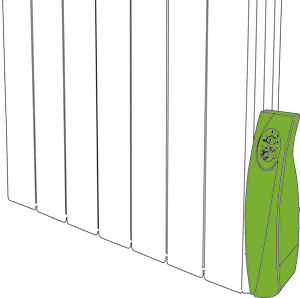

PH6 - Design housing at mid-height

Main features

  • Heating on/off.
  • Child safety.
  • Desired temperature setting.
  • Remotely programmable using a 6-order pilot wire.
  • Selection of the operating modes: Auto, Comfort, Eco (Economy), Anti-Freeze.
  • Two lights indicate the presence of voltage and resistance engaged.

Analogical-controllers

PHE1

Compact housing
+

PHE2

Compact housing 2 - New design !
+

PHE2MB

Compact electric radiator controller 2 - Metallic Black model
+

PH13

Control unit - White model
+

PH13

Control unit - Black model
+

Main features

  • Heating on/off.
  • Child safety.
  • Desired temperature setting.
  • Remotely programmable using a 6-order pilot wire.
  • Selection of the operating modes: Auto, Comfort, Eco (Economy), Anti-Freeze.
  • Two lights indicate the presence of voltage and resistance engaged.

Product plus points

  • Child safety: two jumpers positioned behind the knobs enable you to lock the settings.
  • Ergonomic setting: two ergonomic rotary knobs enable easy selection of the heating mode and of the desired temperature.
  • Robust: the triac temperature control system ensures optimal product lifetime.
  • Product can achieve French (NF) Performance Category C quality mark standards, which relate to finished products after tests have been carried out.
  • "Intelligent" electronic regulation: this provides year-round maintenance of a stable and accurate temperature in your home.
  • A zero-voltage control device reduces electromagnetic interference, in accordance with French quality mark (NF) requirements.
  • High-precision electronic PID (Proportional Integrated Derivative) temperature regulation.
  • Internal protection against overheating faults.

Technical characteristics

  • Power supply
    • Voltage when in use: 230VAC +/-10% 50Hz.
    • Maximum power: 2000W resistive load.
    • Power cord: 1200 mm: 2 conductors on BXAPH006A2A model. 3 conductors on BXAPH006A2PA model.
  • Safety
    • Standards: EN60335-1/EN60335-2-30/EN60730-1/EN60730-2-9.
  • Environment
    • Protection rating: IP24
    • Class: Class II.
    • Operating temperature: 0°C to 40°C.
    • Temperature setting range: +7°C to +30°C.
    • Storage temperature: -20°C to +70°C.
    • Electronic proportional integral control, triac triggering, with a 6-order pilot wire.
    • Electronic NTC sensor employing a microprocessor.
    • 6-order pilot wire (BXAPH006A2PA model).

CODESREFERENCES
BXAPH006A2A White analog control panel for panel heater, Class II, without pilot wire, triac and power supply cable
BXAPH006A2PA White analog control panel for panel heater, Class II, with pilot wire, triac and power supply cable

PANEL HEATER TEMPERATURE CONTROL RANGE


Download imh-fp_ph6_en_v03_020318.pdf
