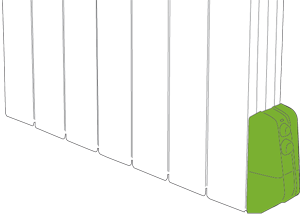

PHE1 - Compact housing

Main features

  • Heating on/off.
  • Desired temperature setting.
  • Remotely programmable using a 6-order pilot wire.
  • Selection of operating mode: Auto, Comfort, Eco (Economy), Anti-Freeze, Heating Off.
  • Two lights indicate the presence of voltage and resistance engaged.

Analogical-controllers

PHE2

Compact housing 2 - New design !
+

PHE2MB

Compact electric radiator controller 2 - Metallic Black model
+

PH6

Design housing at mid-height
+

PH13

Control unit - White model
+

PH13

Control unit - Black model
+

Main features

  • Heating on/off.
  • Desired temperature setting.
  • Remotely programmable using a 6-order pilot wire.
  • Selection of operating mode: Auto, Comfort, Eco (Economy), Anti-Freeze, Heating Off.
  • Two lights indicate the presence of voltage and resistance engaged.

Product plus points

  • Ergonomic setting: two ergonomic rotary knobs enable easy selection of the heating mode and of the desired temperature.
  • Product can achieve French (NF) Performance Category C quality mark standards, which relate to finished products after tests have been carried out.
  • A zero-voltage control device reduces electromagnetic interference, in accordance with French quality mark (NF) requirements.
  • An incorporated temperature sensor, which cannot be accessed from the outside: the product is more resistant during shipment and when you are installing it.
  • High-precision electronic PID (proportional integral derivative) temperature regulation.
  • Internal protection against overheating faults.
  • Integrated water-removal system.

Technical characteristics

  • Power supply
    • Voltage when in use: 230VAC +/-10% 50Hz.
    • Maximum power: 2000W resistive load.
    • Power cord (1m): 2 conductors on BXAPHE01A1A et BXAPHE01A2A models. 3 conductors on BXAPHE01A2PLA et BXAPHE01A2PA models. 4 conductors on BXAPHE01A1PLA et BXAPHE01A1PA models.
  • Safety
    • Standards: EN60335-1/EN60335-2-30/EN60730-1/EN60730-2-5
  • Environment
    • Protection rating: IP24.
    • Class: Class II after installation under the responsability of an integrator (all models except BXAPHE01A1A, BXAPHE01A1PA and BXAPHE01A1PLA, which are in class I).
    • Operating temperature: 0°C to 40°C.
    • Desired temperature setting range: +10°C to +30°C.
    • Storage temperature: -20°C to +70°C.
    • Electronic PID (proportional integral derivative) control employing a microprocessor.
    • Electronic NTC sensor employing a microprocessor.
    • 6-order pilot wire (BXAPHE01A2PA model).

CODESREFERENCES
BXAPHE01A2PA White analog control panel for panel heater, Class II, with pilot wire, triac, relay and power supply cable
BXAPHE01A2PLA White analog control panel for panel heater, Class II, with pilot wire, triac, low noise relay, and power supply cable
BXAPHE01A2A White analog control panel for panel heater, Class II, without pilot wire, triac, relay and power supply cable
BXAPHE01A1A White analog control for panel heater, Class I, without pilot wire, triac, relay and power supply cable
BXAPHE01A1PA White analog control for panel heater, Class I, with pilot wire, triac, relay and power supply cable
BXAPHE01A1PLA White analog control for panel heater, Class I, with pilot wire, triac, low noise relay, and power supply cable

PANEL HEATER TEMPERATURE CONTROL RANGE
