RTDRF - Room temperature thermostat wireless transmission - Require the addition of a wireless receiver

Main features

  • Child safety.

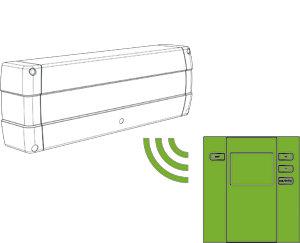

  • Pairing with a wireless multi-channel central control unit for underfloor heating.
  • Verification of pairing with a wireless central control unit.
  • Transmission of the set temperature, the measured temperature and of the battery status to the central control unit.
  • Wireless transmission by means of radio waves.
  • Desired temperature setting.
  • Viewing of settings, of measured and set temperatures, the pairing process, of wireless transmission, keypad locking and of battery status.
Read more

Room thermostats

RT0 RF

Wireless electronic room temperature thermostat - Included wireless receiver
+

RT0 RE

Wired digital room temperature thermostat
+

RHDRFB

Special bathroom room thermostat with boost feature - Require the addition of a wireless receiver
+

RHDRF

Standard model - Require the addition of a wireless receiver - Require the addition of a wireless receiver
+

RHDRFH

Room humidity model - Require the addition of a wireless receiver
+

RTDRF5

Special underfloor heating/cooling - Thermostat with integrated radio remote control
+

RTDRFEL

Special electric heating - Require the addition of a wireless receiver
+

RTDSC

Standard model
+

RTDSCV

Temperature sensor model
+

RTDSCEC

With ECO and CO inputs
+

RTDSCVEC

Temperature sensor model with ECO and CO inputs
+

RTARFB

Special bathroom room temperature thermostat wireless transmission with boost feature - Require the addition of a wireless receiver
+

RTARFV

Temperature sensor model - Require the addition of a wireless receiver
+

RTASC

Standard model (230V)
+

RTASCV

Standard model (24V)
+

RTASCEC

With ECO and CO inputs (230V)
+

RTASCVEC

With ECO and CO inputs (24V)
+

RTANA

Standard model (230V)
+

Main features

  • Child safety.
  • Pairing with a wireless multi-channel central control unit for underfloor heating.
  • Verification of pairing with a wireless central control unit.
  • Transmission of the set temperature, the measured temperature and of the battery status to the central control unit.
  • Wireless transmission by means of radio waves.
  • Desired temperature setting.
  • Viewing of settings, of measured and set temperatures, the pairing process, of wireless transmission, keypad locking and of battery status.

Product plus points

  • Sober design - suitable for traditional or contemporary interiors.
  • Practical: the product has a small footprint.
  • Wide display screen, blue backlighting.
  • Excellent ergonomics and user experience when setting: 4 keys for intuitive use.
  • Child safety: keypad locking.
  • Settings safety:
    - Settings restricted in respect of a minimum temperature set point.
    - Settings restricted in respect of a maximum temperature set point.
  • Digital-control sensor probe thermostat for an intelligent wireless central control unit, multi-voltage, for underfloor heating.
  • The sensor probe thermostat was designed to provide you with an increased level of comfort and with energy savings.
  • Reliable wireless transmission: approved Europe-wide, highly resistant to external sources of interference.
  • High transmission performance: signals can go through walls and ceilings.
  • Flexibility and modulability: the wireless aspect means that you can change the lay-out of areas without having to make any changes at all to wiring.
  • Selection of user language: English, French, Italian or German.
  • Selection of temperature scale: degrees Celsius or degrees Fahrenheit.
  • Calibration of the display temperature.
  • Manual system test: override of the outputs (heating switched or put into heating standby mode).
  • 2 fitting options :
    • on a junction box.
    • salient.

Technical characteristics

  • Power supply
    • Two 1.5V AAA / LR06 alkaline batteries (battery life approximately 2 years).
    • Temperature regulation accuracy: +/- 1°C.
    • Transmission: every 10 minutes, at the latest 1 minute after a set temperature change.
  • Safety
    • Standard: EN60730.
    • Radio standard: EN300220.
  • Environment
    • Protection rating: IP20.
    • Class: Class III.
    • Operating temperature: 0°C to 40°C.
    • Temperature setting range: +5°C to +30°C.
    • Storage temperature: -10°C to +50°C.

Radio transmitter, frequency 868.3 Mhz.
Can be used throughout Europe.

CODEREFERENCE
RTDRFIMHA Sensor probe thermostat, wireless, digital control, white, for underfloor heating system

RANGE OF THERMOSTATS FOR UNDERFLOOR HEATING

Download imh-fp_rtdrf_eng_v03_131017.pdf
